宝贝详情：

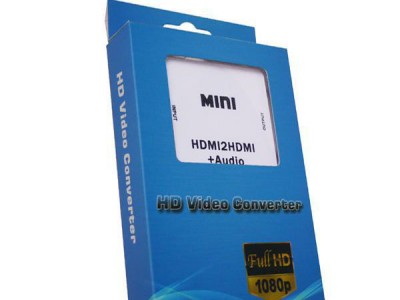

MINI HDMI转HDMI+音频转换器

PLAYVISION.HDV-M612;HDMI转HDMI+音频转换器,可以将HDMI输出信号源内的数字音频转成模拟的立体音频,同时保持原有的数字音频,模拟音频的输出便于连接耳机,功放机等普通音响设备,同时HDMI输入可以解除HDCP,可以将播放器,游戏机等原带有HDCP的给解除掉;便于后端无此功能的电视机,投影机等;

1.功能

1).无需外置供电,小巧

2).无需驱动,即插即用

3).支持HDMI1.3,支持HDMI1.4的3D功能传输

4).高速传输功能,可以支持**高1080P@60HZ 或1920x1080@60Hz.

2.特点

1). HDMI输入接口HDMI*1

2).HDMI输出接口HDMI*1

3).耳机音频输出接口 3.5mm 接口 *1

4).产品尺寸:60*55*20mm

5).重量40g

3.配件

MINI HDMI TO HDMI+AUDIO主机------------------1个

USB供电线-------------------------------------1个

英文说明书------------------------------------1份

申明:由于3.5mm耳机口只能支持模拟音频,此转换器只支持PCM或LPCM,需要在前端蓝光播放器设置菜单内的数字音频出强制PCM或LPCM输出,否则耳机口无声音(详细设置请参考DVD或播放设备说明书)

另有可以解DTS源码的,支持杜比AC3,DTS信号RAW源码的:

连接://detail.china./offer/1202386177.html

1.0 Introduction

The MINI HDMI2HDMI+Audio Converter increases the analog stereo audio output On the basis of the HDMI signal transmission. The analog stereo audio signal can be easily connected to the earphones or audio power amplifier.

1.1Features

1.No need to install drivers, portable, fl**ble, plug and play.

2.Low power, No power adaptor.

3.HDMI is compliant with HDMI1.3.

4.High bandwidth capability support up to

1920x1080@60Hz.

2.0 SPECIFICATIONS

1.Input ports:1xHDMI.

2.Output ports: 1xHDMI, 1x3.5mmPhoneJack.

3.Dimensions(mm):60(D)x55(W)x20(H)

4.Wight (g):40

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) Main unit (HDMI TO HDMI AUDIO Converter)

2) User Manual.

4.0 PANEL DEscriptIONS

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.
