| 建议零售价 | ？？168.00 |
|---|---|
| 货源类别 | 现货 |
| 类型 | 切换/分配器 |
| 支持系统 | Windows 7 |
| 分辨率 | 4k*2K |
| 远程唤醒 | 支持远程唤醒 |
| 电源管理 | 支持电源管理 |
| 线长 | 1080P,前后各15米（米） |
| 用途 | 家用音频分离 |
| OEM | 可OEM |
| 加工方式 | 贴牌加工 |
| 最快出货时间 | 1-3天 |
| 是否支持一件代发 | 支持 |
| 发票 | 不提供发票 |
| 售后服务 | 全国联保 |
| 包装清单 | 产品主要*1 说明书*1,USB供电线*1 |
| 颜色 | 黑色 |
| 品牌 | OTIME |
| 型号 | OT-901 |

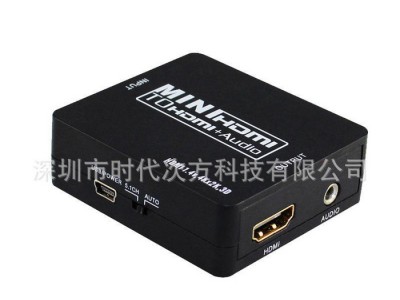

Mini HDMI 1.4 to HDMI
+Audio Repeater
User manual
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
I. Introduction
The MINI HDMI1.4 to HDMI+Audio Repeater increases the analog stereo and digital toslink audio output On basis of the HDMI s ignal transmission. The audio signal can be easily connected to the earphones or digital audio power amplifier.
II. Features
No need to install drivers, portable, fl**ble, plug and play.
Support analog stereo and digital toslink audio output.
Compliant with HDMI 1.4a, CTS 1.4a, DVI 1.0 & VESA DisplayPort 1.1a standards.
Support 3D Video & 4Kx2K, 8, 10, 12 & 16 bits per color depth.
Extends 4Kx2K video up to 40 meter transmission distance.
III. Package
MINI HDMI1.4 to HDMI+Audio Repeater
USB Cable(standard to mini)
Operation Manual
IV. Specifications
Frequency Bandwidth 2.97Gbps
Input Ports 1 x HDMI Female ports.
Output port 1 x HDMI Female port,1x Toslink,1x Earphone
HDMI Audio Output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD,
DTS-HD
Power Supply USB POWER
ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm) 60(D) x55 (W) x 20(H)
Weight (g) 40
